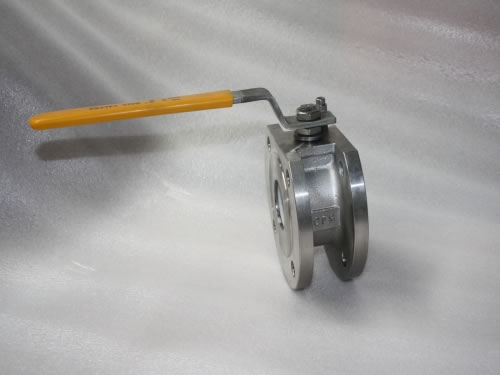

DIN Wafer Type Ball Valve

DIN Wafer Type Ball Valve

Description
Featuring small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance, DIN wafer type ball valve is widely applied in water, oil, natural gas, weak corrosive liquid, etc. This DIN valve is mainly used for cutting off, distributing and altering the flowing direction of medium.

Advantages
1. The sealing materials of this DIN wafer type ball valve all use standard PTFE and PPL, carbon fiber, etc. And they are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In this way, the sealing performance and wear resistance is guaranteed, leading a longer service life. Besides, we have excellent after-sale service system, winning widespread recognition and praise of our customers. Our DIN valves are guaranteed within 18 months.
2. Those wafer type ball valves are strictly inspected before into storage, thus ensuring products’ quality.
3. The ball of this DIN valve is of floating type, therefore, under the function of pressure, it can generate a certain amount of displacement and press tightly on the sealing surface of exit end. In thus way, this float ball valve can guarantee excellent sealing performance of exit end.

Components of DIN Wafer Type Ball Valve

Parts Name Material
Valve Body Stainless Steel CF8/CF8M Carbon Steel WCB
Ball Stainless Steel 316/304 Stainless Steel SS304
Sealing Gasket PTFE PTFE
Valve Stem Stainless Steel 304/316 Stainless Steel SS304
Packing PTFE PTFE
Locating Pin Stainless Steel 304 Stainless Steel 304
Handle Stainless Steel 304 Stainless Steel 304
Nut Stainless Steel 304 Stainless Steel 304
Packing Gland Stainless Steel 304 Stainless Steel 304
Handle Cover Plastics Plastics
Sealed Bottle Cap Stainless Steel 304/316 Stainless Steel SS304
Gasket PTFE PTFE

Technical Parameters of DIN Wafer Type Ball Valve
