3-Way Ball Valve with Electric Actuator
Description
Our 3-way electric ball valve is of thread end. This 3-way ball valve is mainly utilized for cutting, distributing, and changing the flowing direction of medium.
Application
3-way electric ball valve is widely used in such applications as oil, water, natural gas and some weak corrosive liquids.
Performance
1. Owing to good self-lubrication of some materials like PTFE, the 3-way ball valve features low frication loss coefficient, stable performance, wide range of application and excellent sealing. Moreover, it is not easy to go aging.
2. The ball of 3-way electric ball valve is in float type. Under the pressure of medium, the ball can move and press tightly on sealing surface of exit end, guaranteeing good sealing performance.
3. The seal ring adopts elastic materials, thus it is easy to seal and good in sealing. Furthermore, the sealing capability of the 3-way ball valve increases as the medium pressure increases.
Main Components and Materials of 3-Way Electric Ball Valve
| Connection Type | Female Thread Connection | Butt Welding Connection | |||||
| Name of Parts | Valve Body / Bonnet | WCB | CF8(304) | CF8M(316) | WCB | CF8(304) | CF8M(316) |
| Ball / Stem | 2Cr13 | 0Cr19Ni9 | 0Cr17Ni12Mo2 | 2Cr13 | 0Cr19Ni9 | 0Cr17Ni12Mo2 | |
| Seal Ring / Packing | Reinforced PTFE / PPL | ||||||
| Working Condition | Suitable Medium | Water, Oil, Steam, etc | Nitric Acid and Other Corrosive Liquids | Acetic Acid and Other Corrosive Liquids | Water, Oil, Steam, etc | Nitric Acid and Other Corrosive Liquids | Acetic Acid and Other Corrosive Liquids |
| Operating Temperature | -29~180℃ (Reinforced PTFE), -29~300℃ (PPL) | ||||||

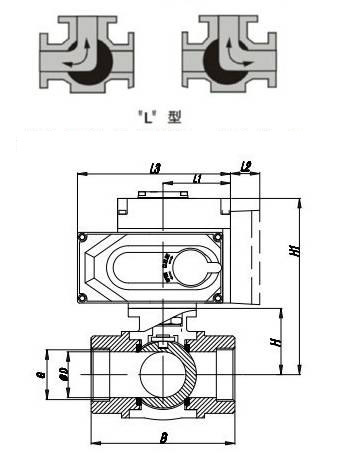

Technical Parameters of 3-Way Electric Ball Valve
| Caliber | Actuator | A | H | L |
| 15 | ZAM32 | 110 | 42 | 72 |
| 20 | ZAM52 | 160 | 49 | 82 |
| 25 | ZAM52 | 160 | 59 | 90 |
| 32 | ZAM63 | 190 | 63 | 112 |
| 40 | ZAM63 | 190 | 71 | 120 |
| 50 | ZAM75 | 206 | 78 | 145 |
| 65 | ZAM92 | 260 | 102 | 185 |
| 80 | ZAM105 | 286 | 109 | 210 |
| 100 | ZAM125 | 340 | 140 | 268 |
